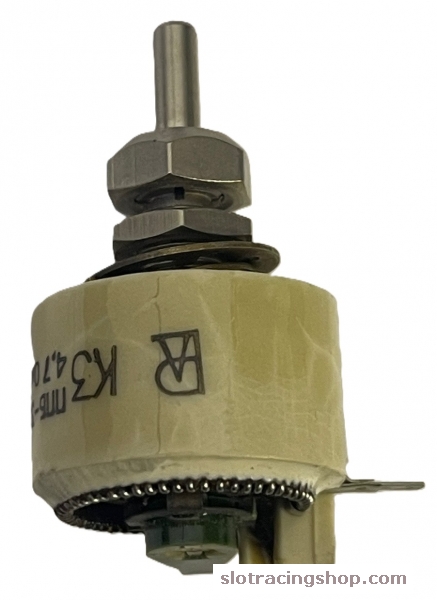

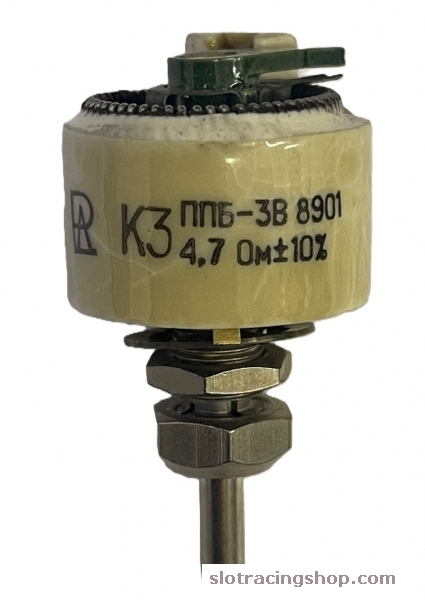

ZHB Brake rheostat 4.7 Ohms
ZHB Brake rheostat 4.7 Ohms

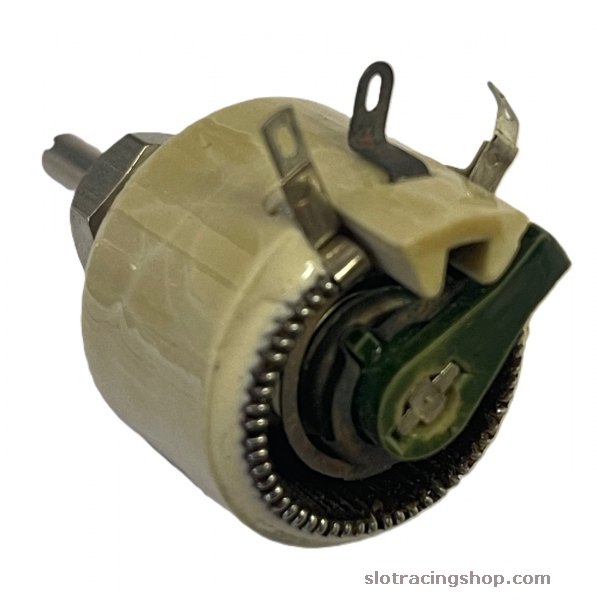

Wound with flat nichrome wire. Primarily used in controllers manufactured by Nesterenko A.I., but is suitable for any electronic controller.

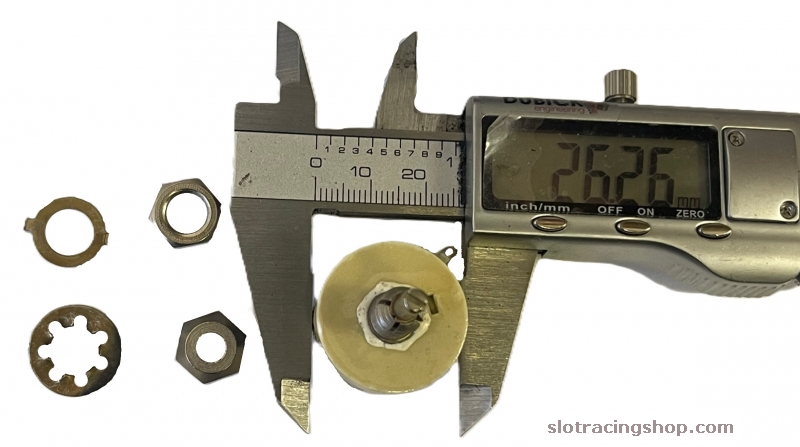

- Rheostat diameter: 26.3 mm (1.035");

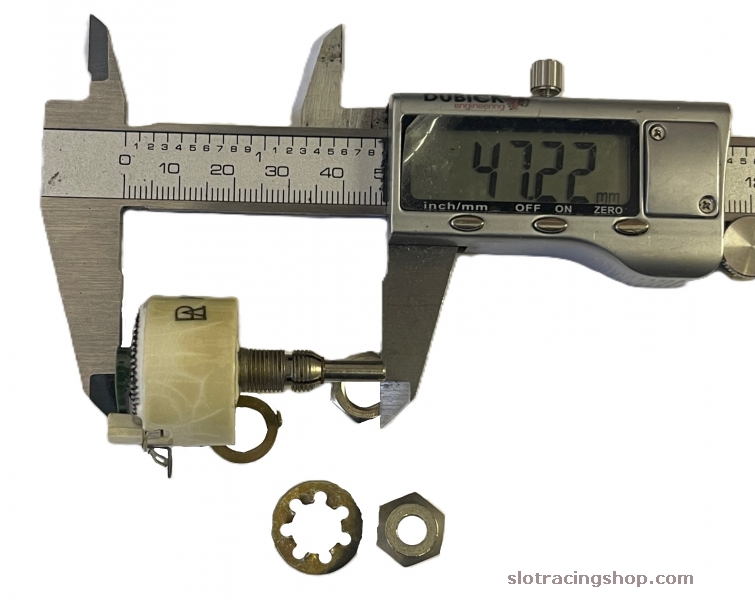

- Total rheostat length: 47.2 mm (1.858");

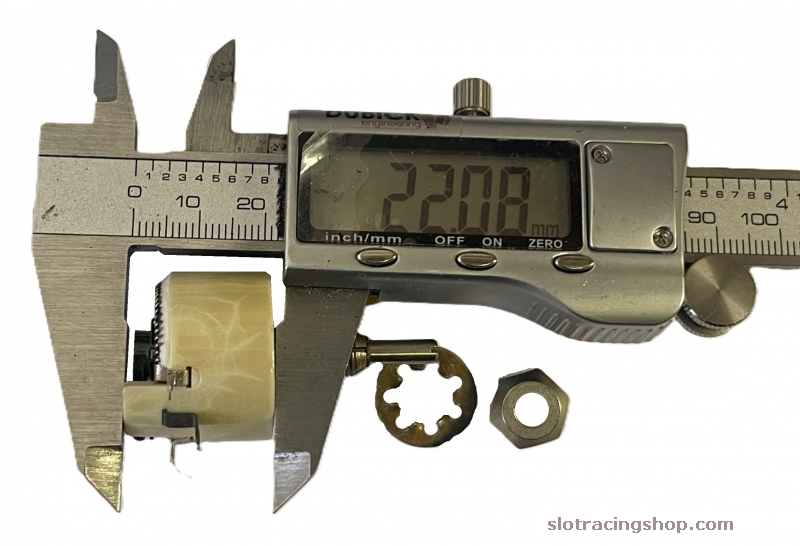

- Body length: 22.1 mm (0.870");

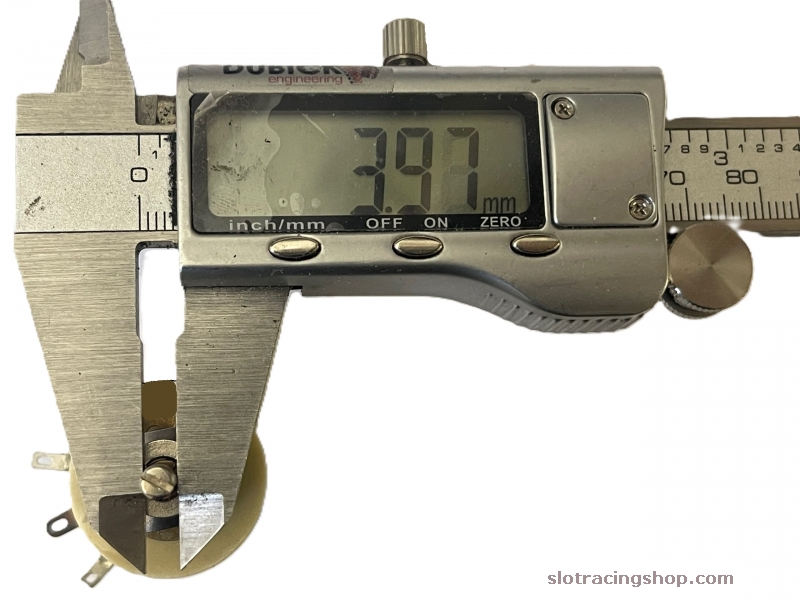

- Diameter of the movable handle shaft: 4 mm (0.157");

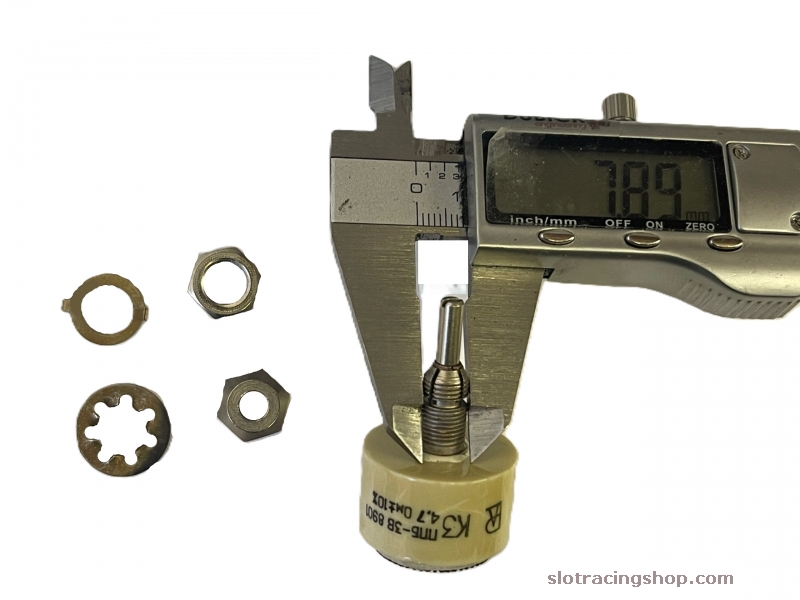

- Overall diameter of the movable handle shaft at the body: 7.9 mm (0.311").
